Automated Medication Dispensing System DP
AutopharmX Automated Medication Dispensing System DP is designed for storing and distributing drugsin bulk. In the process of distribution, it also allows for rapid and uninterrupted refilling of various drugs in batches. Together with its modern designs and small footprint, it streamlinesthe pharmaceutical layout and meets the requirements of a modern pharmacy.
- FEATURES
Multi-Drug Dispensing
Dispenses all drugs in one prescription at one time
Automatic Replenishment
Refills drugs from two waiting channels without human intervention.

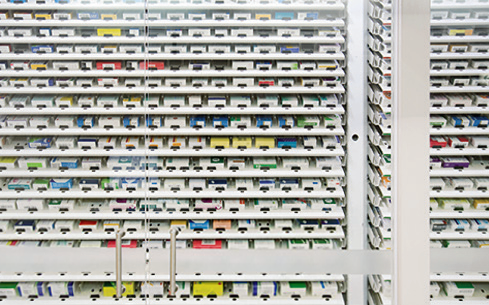

Free Dropping
Faster delivery by gravity.

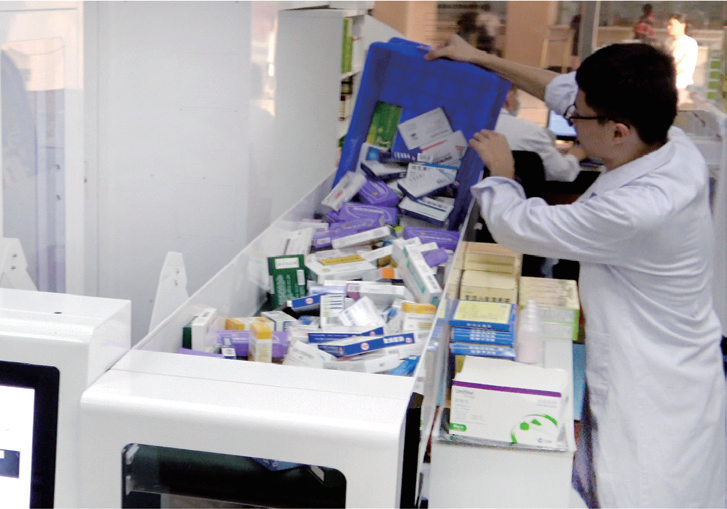

Drug Replenishment
Refills drugs in round bottles or vials in batches with two robotic arms, two waiting plates and four refilling channels.
Drug Identification
Detects similar drugs, drugs in different doses and high-risk drugs.
- SPECIFICATION
| Automatic Dispensing Machine Model: | D3P-PLUS | D5P-PLUS | D7P-PLUS |
|---|---|---|---|
| Machine Size | |||
| Machine size | L4680 × W2640 × H2810 mm | L5870 × W2640 × H2810 mm | L6898 × W2620 × H3120 mm |
| Cover area | About 7.55 m² | About 9.55 m² | About 14 m² |
| Specifications for Storable Drugs | |||
| Max. weight per medicine box | 480 g · max 500 g | 480 g · max 500 g | 480 g · max 500 g |
| Width | 25 – 100 mm | 25 – 100 mm | 25 – 100 mm |
| Height | 10 – 80 mm | 10 – 80 mm | 10 – 80 mm |
| Length | 50 – 200 mm | 50 – 200 mm | 50 – 200 mm |
| Dispensing Data | |||
| Maximum dispensing speed | 3000 boxes/hour | 3000 boxes/hour | 3000 boxes/hour |
| Prescription processing capability | 600 prescriptions/hour | 600 prescriptions/hour | 600 prescriptions/hour |
| Dispensing method | Free fall | Free fall | Free fall |
| Replenishment Data | |||
| Maximum replenishment speed | 3000 boxes/hour | 3000 boxes/hour | 3000 boxes/hour |
| Automatic replenishment robot speed | 800 boxes/hour | 800 boxes/hour | 800 boxes/hour |
| Power / Energy / Noise / Interface | |||
| Fuse value | 10 A | 10 A | 10 A |
| Power | 5.5 kW, static 150 W | 5.5 kW, static 150 W | 5.5 kW, static 150 W |
| Voltage | 220 V AC, 50–60 Hz | 220 V AC, 50–60 Hz | 220 V AC, 50–60 Hz |
| Main power supply | ≥ 7 kW | ≥ 7 kW | ≥ 7 kW |
| Noise level at workbench | 65 dB (A) | 65 dB (A) | 65 dB (A) |
| Storage Capacity | |||
| Total drug box storage | 10,000 boxes | 18,000 boxes | 35,000 boxes |
| SKU capacity | 960 types | 1,440 types | 2,500 types |
| Inventory | |||
| Inventory time | 30 minutes | 50 minutes | 70 minutes |
Frequently Asked Questions
How does the automatic replenishment system improve pharmacy efficiency?
The DP Series features a fully automatic replenishment system that allows medications to be refilled without interrupting ongoing dispensing operations. Pharmacy staff can replenish multiple medications in batches while the system continues processing prescriptions, helping maintain continuous workflow during busy periods. This approach reduces manual restocking time, improves medication availability, and minimizes operational interruptions. By automating routine replenishment tasks, pharmacies can increase dispensing efficiency and allow pharmacists to focus more on prescription verification and patient care instead of inventory handling.
How does the dispensing machine reduce medication selection errors?
The DP Series uses intelligent drug identification technology to help distinguish medications with similar packaging, different strengths, and high-risk classifications. Automated medication selection reduces dependence on manual picking, helping improve dispensing accuracy and consistency. By combining automated dispensing with medication verification, the system supports standardized pharmacy workflows and helps reduce the risk of selecting the wrong medication, particularly in high-volume outpatient pharmacies where speed and accuracy are equally important.
Why is high-density medication storage important for outpatient pharmacies?
High-density medication storage enables pharmacies to keep more medications within a compact installation area, making better use of available pharmacy space. Larger storage capacity also reduces replenishment frequency, shortens medication retrieval time, and supports continuous dispensing during peak prescription periods. As outpatient prescription volumes continue to grow, high-density storage helps pharmacies improve operational efficiency while maintaining organized inventory management and supporting future service expansion.
Who should use the DP Series Automated Medication Dispensing Systems?
The DP Series is designed for healthcare facilities that require fast, reliable, and high-volume medication dispensing. It is particularly well suited for outpatient pharmacies in medium and large hospitals, medical centers, and healthcare groups that process a large number of prescriptions each day. With multiple models offering different storage capacities and SKU configurations, the system can be matched to current operational needs while providing flexibility to support future growth as prescription demand increases.
